- Product Code: 5901691625204
- Manufacturer part number: DO-2520
Top advantages
• Miliradian DSMR reticle
• Perfect for AR platform
• Large field of view
• Perfect image quality
• Second plane reticle
• 6x maximum magnification
Warranty: 120 months

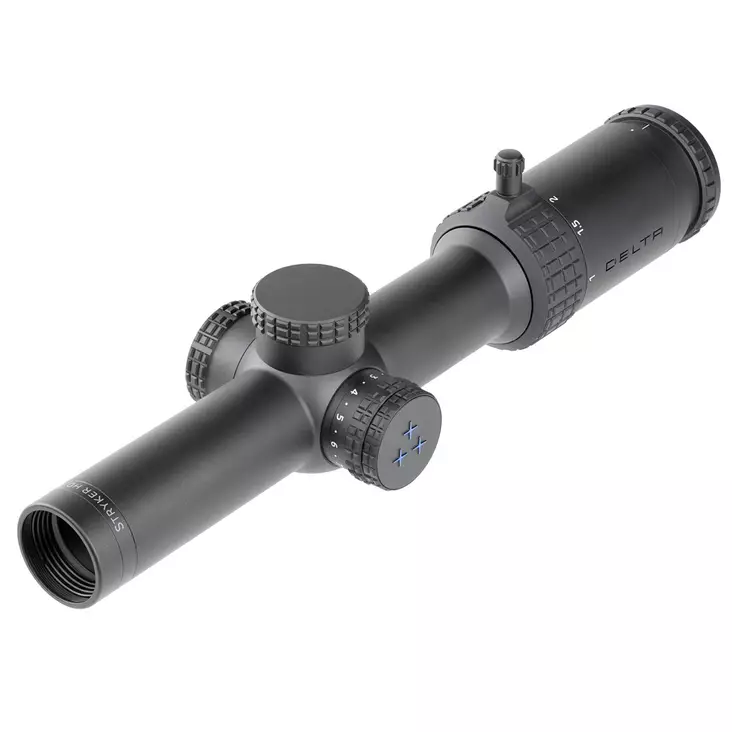

The Delta Optical Stryker HD 1-6x24 riflescope has been designed for AR rifles for both dynamic and recreational shooting competitors. The very large field of view (36m / 100m) with 1x magnification ensures target tracking as easy as with open collimators but is more precise. The field of view puts this model at the forefront. In contrast to collimators, the Delta Optical Stryker HD 1-6x24 riflescope with it's 6x magnification allows to recognize the target and make a precise shot at much further distances.
Low profile closed turrets protect against accidental misalignment of the crosshair settings. Zeroing the turrets does not require additional tools - after setting the reticle properly, just raise the turret knob, set it to ZERO position and click back. The illuminated dot in the center of the reticle ensures quick target tracking at close distances. To facilitate a quick change of magnification, the scope has been equipped with a special adjustment lever.
Second plane DSMR reticle does not change with the the zoom change, only the size of the target changes. Thanks to this, the aiming point at the example distance of 300m obscures only 5.28 cm of the target. The riflescope is designed in Poland and manufactured in Japan using aviation grade aluminum alloys.
Serie: Stryker HD
Minimum magnification[x]: 1
Maximum magnification[x]: 6
Objective lens diameter [mm]: 24
Reticle: DSMR
Illuminated reticle: Yes
Calibrated Ranging Power: 6
Angular field of view [° degrees]: 20,24 - 3,45
Linear field of view at 100 m [m]: 35,6 - 5,9
Exit pupil [mm]: 24 - 4
Eye relief [mm]: 104 - 86
Water resistance: 0.3kg/cm2
Weight [g]: 490
Length [mm]: 256
One click: 0,1 MIL
Max. elevation / windage adjustment range : 23MIL
Tube: 30 mm
Shock resistance [J]: 6500
Parallax adjustment: Nie
Reticle position: Second focal plane(SFP)
Functional temperature range [°C]: -20 / 71
Nitrogen filling: Yes
Remarks: Throw levers
