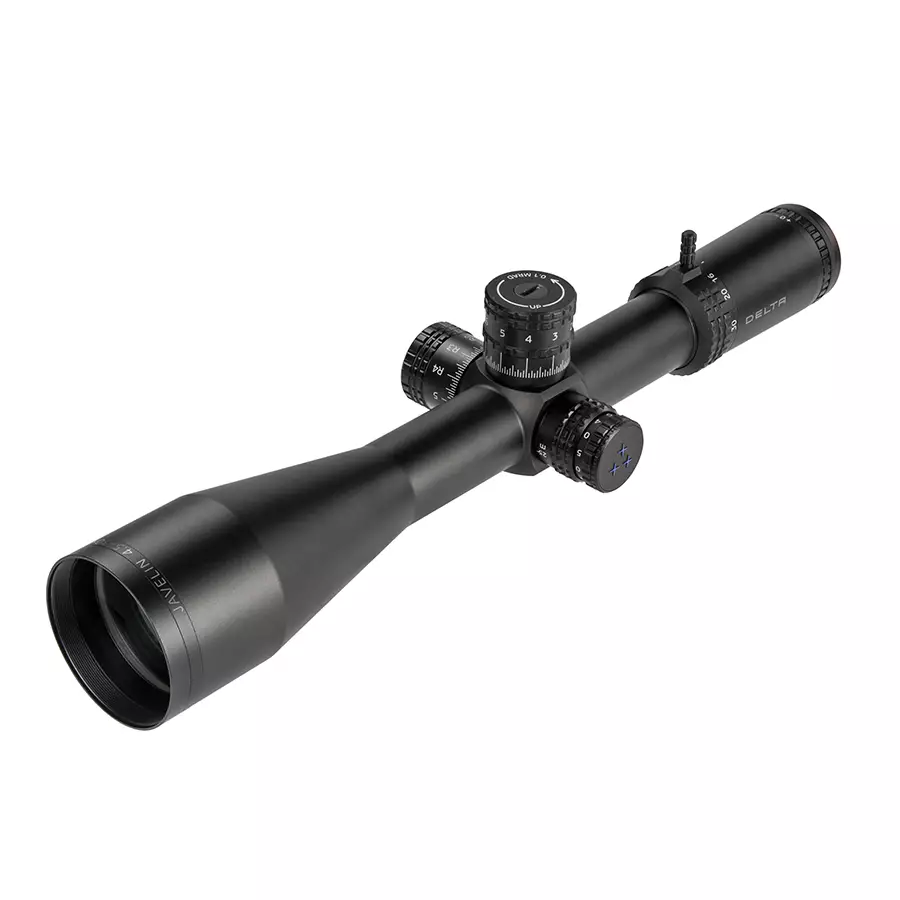

Delta Optical Javelin 4,5-30x56 (MRAD)

Top advantages
• Perfect for long distance precise shooting
• Universal parameters, 8x zoom range
• Precise and unique reticles
• High quality 56mm ED glass lens
• Paralax correction
Warranty: 120 months

The Javelin 4.5-30x56 FFP riflescope is dedicated to tactical long-distance shooters.

It is a combination of such features as: high quality ED optics, large adjustment turrets thanks to 34mm tube, 0.1MRAD click, both turrets lockable, illuminated aiming point, unique SMR-1 and SMR-2 FFP reticles, zero-stop, throw lever. The SMR (Scandinavian Match Reticles) reticles are made for shooters by shooters. All SMR reticles are designed to be clean and simple without any unnecessary distractions but remain functional, versatile and efficient.

Serie: No
Magnification [x]: 4.5 - 30
Minimum magnification[x]: 4.5
Maximum magnification[x]: 30
Objective lens diameter [mm]: 56
Reticle: SMR2
Illuminated reticle: Yes
Linear field of view at 100 m [m]: 8.2 - 1.3
Eye relief [mm]: 100
Water resistance: 0.3 kg/cm2
Weight [g]: 1 036
Length [mm]: 388.6
One click: 0,1 MIL
Max. elevation / windage adjustment range : 30 MIL/30 MIL
Tube: 34 mm
Parallax adjustment: Side focus (25 m - 8)
Diopter adjustment range: -2D / +2D
Reticle position: First focal plane(FFP)
Functional temperature range [°C]: -20 — +71
Nitrogen filling: Yes
Remarks: ZeroLock, ED Glass, Throw levers
