Best-in-Class Resolution
See the clearest images of fish and bait
Largest Field of Vision
The world's most complete 180° live sonar view
Quick-Switch Views
Switch between live views faster than ever
Easy Upgrade
Simple system, simpler upgrade
The only better live view involves getting your head wet
With 180° views, ActiveTarget® 2 XL is the world’s clearest, most complete live sonar.
Best-in-class resolution

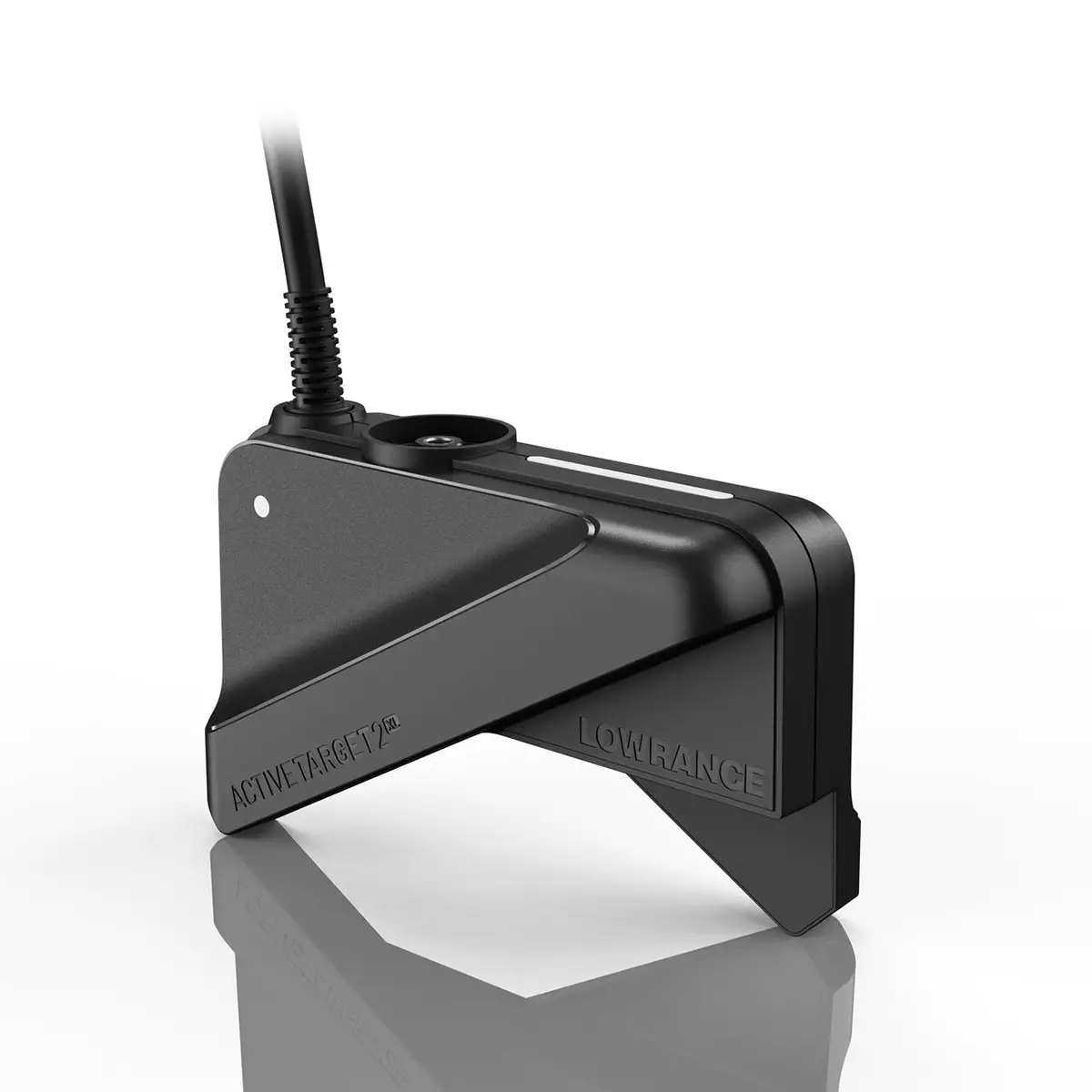

Our live sonar resolution was already best in class. Well, now it’s even sharper. The new XL transducer delivers the clearest possible views of fish and bait movement in real time.
Largest field of vision
Leave nothing unseen with full 180° XL live views across
Forward, Down, and Scout modes – all from a single transducer.
Forward XL View
Surface-to-surface 180° views utilize the whole display, so you never miss a thing, from the moment your lure drops to the bite itself.
Down XL View
See the full expanded 180° live image beneath your boat, running right the way from front to back.
Scout XL View
A live overhead 180° view helps you spot bait balls and big schools of fish up ahead of your boat.
Industry-First Scout Live 360° View
Combining two systems unlocks an industry-first Scout Live 360° view around your entire boat*. This truly comprehensive live view means you can select the perfect place to cast without even having to move your boat. And you can say goodbye to interference with our industry-first ping sync technology.
*Dual transducers and modules required, HDS PRO only.
Quick-Switch Views
Why waste time adjusting your gear? A redesigned transducer lets you switch instantly between Forward XL and Down XL views from your display. No need to go fishing for your transducer. Just select your preferred view, and fish.
Mount Smarter, Scout Faster
A new bracket – which can be shaft- or motor-mounted** – also makes it quicker and easier to switch into Scout Mode. Once you’re there, quick-reference markers help you choose the right angle for deep or shallow water. With simple tricks like these, no one makes it easier to switch between sonar views.
**Motor-mount exclusive to Recon Trolling Motor
Easy Upgrade
ActiveTarget 2 XL is a one and done upgrade, with all views available from a single transducer. Anglers can even use their existing ActiveTarget 2 sonar module, reducing the amount of gear required. Simply mount the new XL transducer and cast. It’s also compatible with a wide range of Lowrance displays, including HDS® PRO, HDS® LIVE, HDS® Carbon and Elite FS®.
The Ultimate Fishing System Just Got Even Better
Combine new ActiveTarget® 2 XL Live Sonar, with your HDS PRO®, Ghost® X Trolling Motor, Active Imaging™ HD, engines, and much more to complete the Ultimate Fishing System.
Sonar
Frequencies
650-1300 kHz
Max Depth
200' (60.96m)
Beamwidth
20° x 180°
Connectivity
Ethernet
Yes: 1-100 Mbit Ethernet Port
Electrical
Power Consumption, max.
2.2A @ 10.8VDC
Power Consumption, typical
1.5A @ 13.8VDC
Supply Voltage
10.8 VDC - 31.2 VDC
Recommended Fuse Rating
5A
Environment
Operating Temperature Range
Module: 5°F to 131°F (-15°C to 55°C)
Transducer (water): 32°F to 95°F (0°C to 35°C)
Shock and Vibration
100,000 cycles of 20 G
Humidity
60°C, 95% relative humidity (RH) for 18 hours
Storage Temperature Range
-22°F to 158°F (-30°C to 70°C)
Waterproof Rating
IP67
