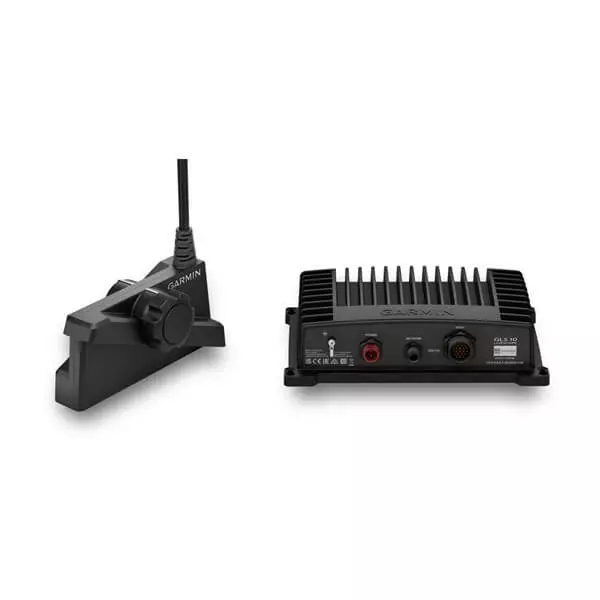

Garmin LiveScope System Plus LVS34
- Product Code: 753759298456
- Manufacturer part number: 010-02706-00
- Product temporarily out of stock
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid colour palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
CLEAR VISION
See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILISATION
A built-in stabilisation system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOUR PALETTES
Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
FORWARD MODE
Scout ahead of your boat to see what’s happening in real time.
DOWN MODE
Explore live views of the activity directly beneath your boat.
PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
Physical & Performance
| Dimension | GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm; LVS32 transducer: 13.7 x 9.7 x 4.6 cm |
| Waterproof | IPX7 |
| Weight | GLS 10 sonar black box: 2.0 kg; LVS32 transducer: 0.9 kg |
Features
| Security updates until at least (YYYY-MM-DD) | 2024-03-21 |
| Transducer cable length | 20 ft |
| Transmit power | 500 W |
| Sonar Type | Live |
| Power usage | 21 W typical, 58 W max |
| Perspective Mode Mount Included | Yes |
| Transducer number of pins | 21 |
| Temperature range | GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C |
| Transducer beamwidth | 20° x 135° |
| Fuse | 7.5 A |
| Misc |
|
| Garmin Marine Network Ports | 1 (small connector) |
| Power Input | 10-32 V |
| Target Separation @100' | 14" |
| Maximum depth | Down and Forward: 61.0 m |
| Frequency | 530 - 1,100 kHz |
| Compass safe distance | 4″ (0.1 m) |
In the box:
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 metre Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
